Summary

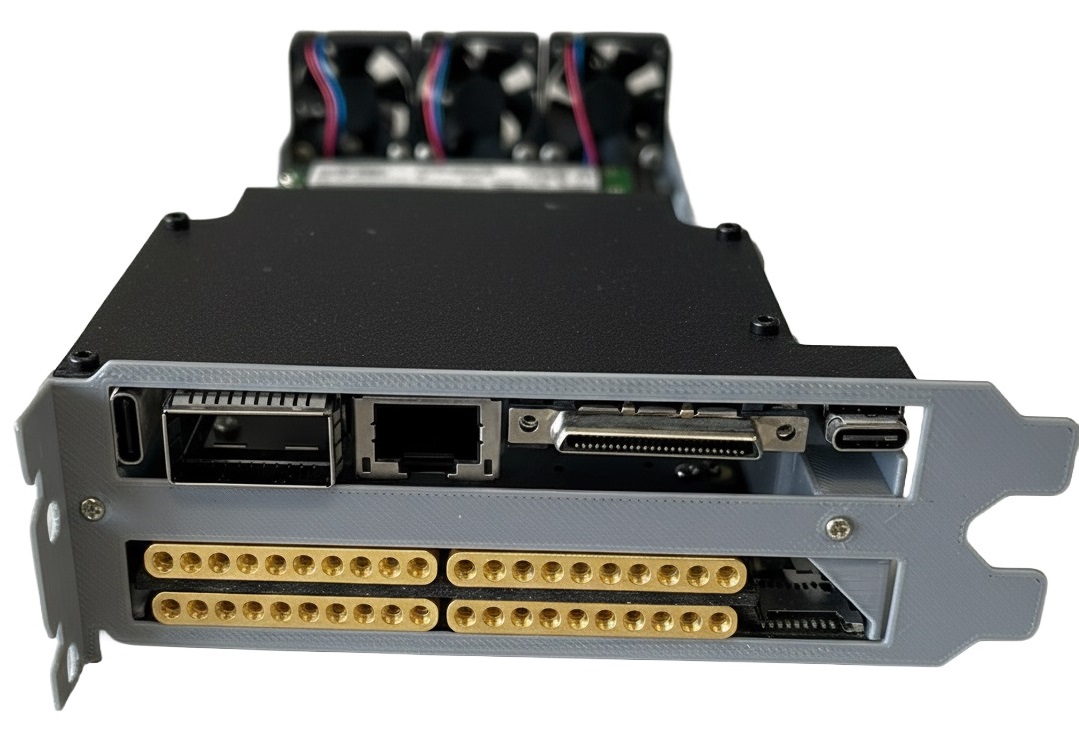

A Versal RF VR1602/VR1652 Adaptive SoC based 2-slot, 241.30mm long, PCIe card. This platform delivers all the advantages of AMD's latest RF platform in a common industry standard and deployable form factor.
Versal RF offers 16 DACs and 16 ADCs at 14-bit resolution with up to 18GHz badwidth combined with powerful hardened IP for FFT, channelization, LDPC decode, and resample. Alpha Data is proud to deliver these uncompromised design resources in an industry standard PCIe form factor. Features include: 32 channel wideband ADC/DAC connectivity, RF clock reference inputs, PCIe Gen5x4 or PCIe Gen4x8, NVMe storage (gen5), QSFP-DD 400G Ethernet, 42GPIO, USB host, 1000Base-T Ethernet, system monitoring, USB JTAG programming. Manufacturing options are available for VR1602 and VR1652 devices.
Applications
RF Signal Sampling/Generation
Electromagnetic Spectrum Operations (EMSO)
Radar Systems
MilCom
RF Signal Sampling/Generation
Beamforming
Signal Detection/Jamming
Pre-6G Systems
Board Features
14-bit x 16 ADC and 16 DAC channels capable of Multi-Gigasample data conversionAMD Versal hardened and re-configurable (FPGA) logic and DSP processing
AMD Versal multi-core control and computation Processing System
18GHz front end bandwidth
FPGA Features (Hard IP)
16x 14-bit 8GSPS RF-ADC16x 14-bit 16GSPS RF-DAC
2x ARM® Cortex™-A72 (APU)
2x ARM® Cortex™-R5F (RPU)
2x 100G Multirate Ethernet MAC
1x PCIe Gen5x4
4x DDR5 Memory Controllers
