Summary

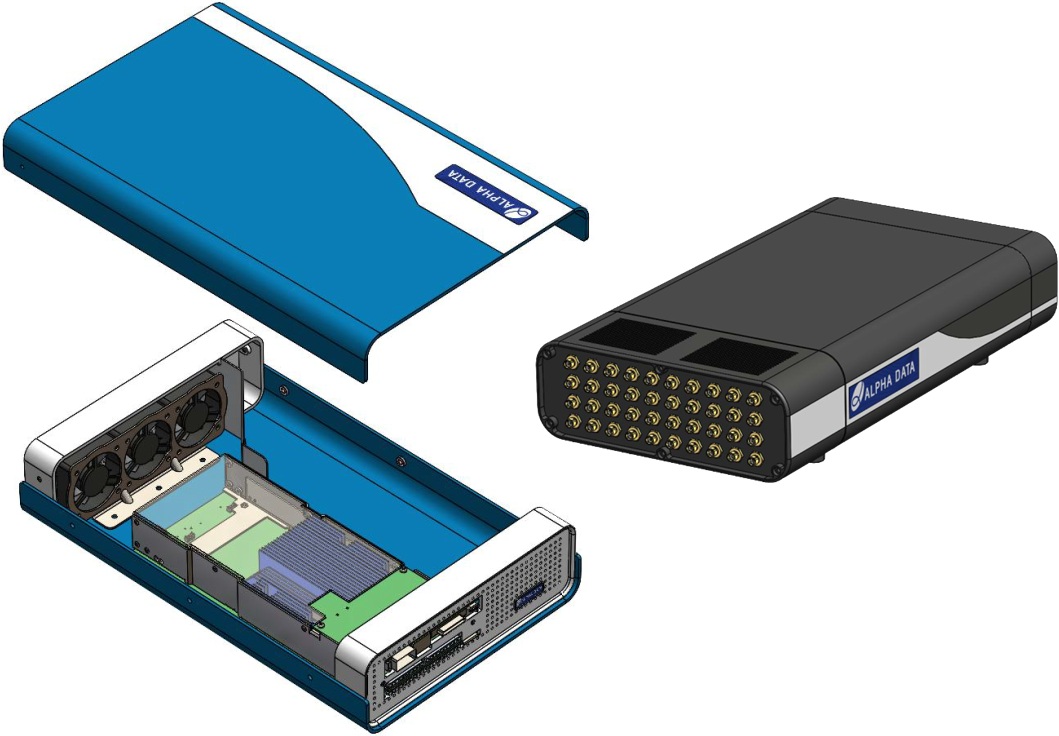

This Versal RF, standalone enclosure, delivers all the advantages of AMD's latest RF platform in a compact deployable form factor based on Alpha Data's PCIe Versal RF solution: ADA-PA310.

Supporting the Versal RF VR1602 and VR1652 devices, this appliance offers 16 DACs and 16 ADCs at 14-bit resolution with up to 18GHz bandwidth combined with powerful hardened IP for FFT, channelization, LDPC decode, and resample. Alpha Data is proud to deliver these uncompromised design resources in a convenient standalone form factor. Features include: 32 channel wideband ADC/DAC connectivity, RF clock reference inputs, NVMe storage (gen5), QSFP-DD 400G Ethernet, 42GPIO, USB host, 1000Base-T Ethernet, system monitoring, USB JTAG programming. Customized front panels and connector options available (i.e. SMA breakout).

Specification

Board Format

Environmental Specifications

Operating Humidity Range:
Up to 95% (non-condensing)

Host I/F

Target Device

AMD Versal RF
VR1602 (VSVA2488)

FPGA Resources

FPGA Hard IP Cores

On Board Memory

Target FPGA Configuration

PS - Configured via OSPI, uSD, eMMC or JTAG

FPGA Configuration Flash

On-board Clock Specifications

250MHz Reference Clock- HSSIO MGTs
Programmable Clock (156.25MHz default)
300MHz Reference Clock (LPDDR5)
300MHz Fabric Clock
25MHz Reference Clock (Ethernet)
33.33MHz Reference Clock (PS Core)
External Analog Reference Clock

I/O Interfaces

Ordering Information

Related Products

ADA-VA330

RF Signal Sampling/Generation

A Versal RF VR1602/VR1652 Adaptive SoC based 14.6.11 SOSA-Aligned 3U VPX module. This module delivers all the advantages of AMD's latest RF platform, in a common industry standard and deployable form factor.

View Product

ADA-PA310

RF Signal Sampling/Generation

A Versal RF VR1602/VR1652 Adaptive SoC based 2-slot, 241.30mm long, PCIe card. This platform delivers all the advantages of AMD's latest RF platform in a common industry standard and deployable form factor.

View Product

ADM-XRC-9R1-B

Adaptable RF Signal Processing

A high performance XMC rugged System On Module (SOM) based on the Gen 3 AMD Zynq Ultrascale+ RFSoC, which combines FPGA Fabric, 6GHz ADC and DAC interfaces and ARM CPU cores in a single low-power device.

View Product

Resources:

Deliverables

ADA-SA320 Board
One-Year Warranty
One-Year Technical Support

Support

Please contact Alpha Data for full details on the available support packages for the ADA-SA320.
