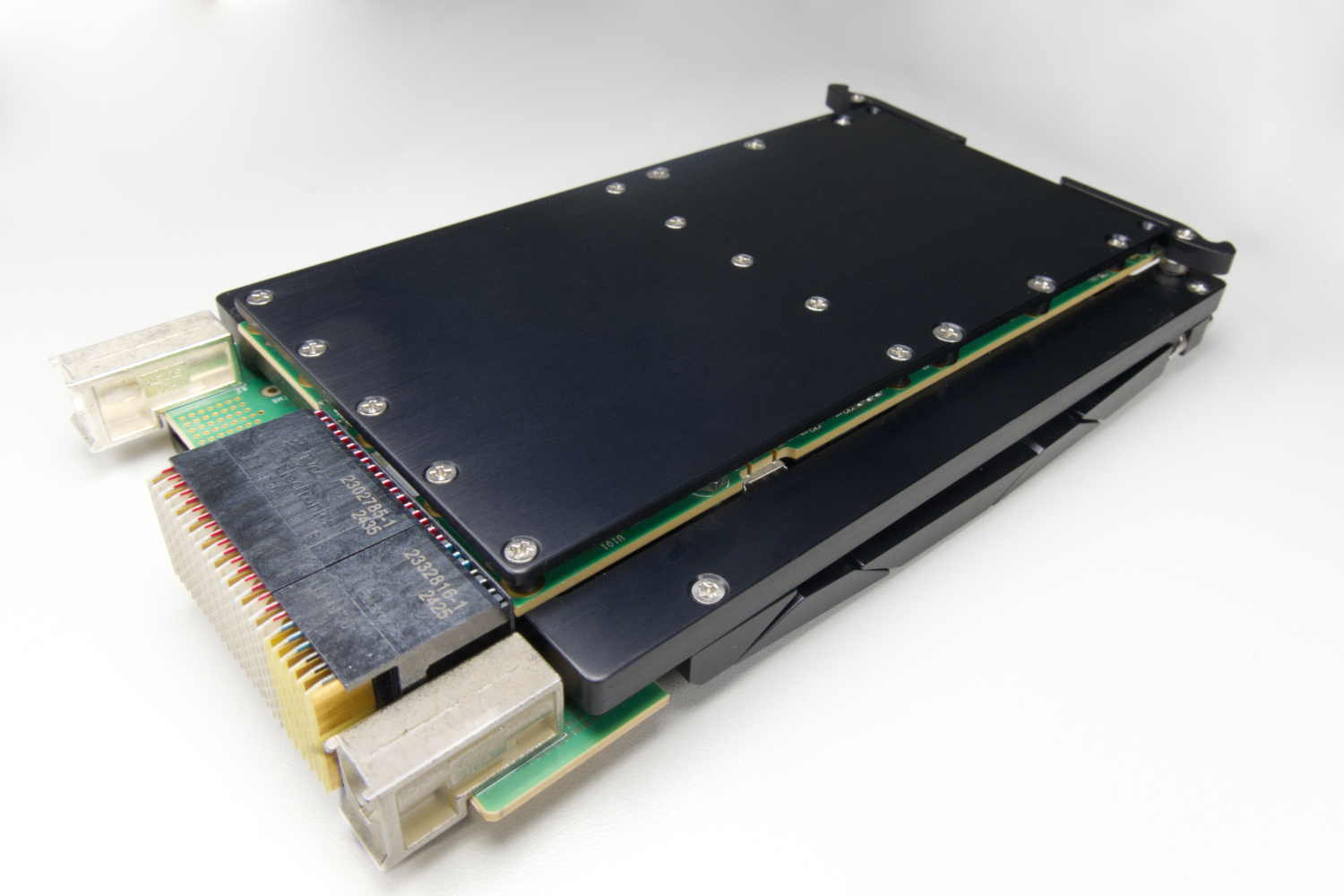

AMD KU060/KU115 Ultrascale FPGA SOSA-Aligned 14.6.11-0 3U VPX module. For embedded high-performance FPGA compute and I/O-intensive applications.

The module is provided in a rugged SOSA-Aligned 3U VPX format and is available in industrial temperature grades with conduction cooling. Features include PCI Express Gen2 interface, external memory, high-density I/O, system monitoring and flash boot facilities.

A comprehensive cross-platform API with support for Microsoft Windows, Linux and VxWorks provides access to the full functionality of these hardware features.

Board management is provided by the combination of the Artix FPGA and AVR microcontroller. This allows the board to be managed via PCI Express or via USB.

The KU1 provides multiple communications modes:
- PCI Express Gen2 x4 through the Artix FPGA with an optional Gen3 x4 PCI Express link direct to the target FPGA.
- Gen3 x8 PCI Express link direct to the target when the bridge is in bypass mode.

Specification

Board Format

Environmental Specifications

Operating Humidity Range:
Up to 95% (non-condensing)

Host I/F

Target Device

AMD Kintex® UltraScale™
XCKU060, XCKU115 (FLVA1517)

FPGA Resources

FPGA Hard IP Cores

On Board Memory

Target FPGA Configuration

- PCI Express Bridge on power up
- Software via PCI Express Bridge
- Via External JTAG connector

FPGA Configuration Flash

On-board Clock Specifications

Low-jitter 250MHz reference clock, suitable for SerDes applications
Low-jitter 300MHz reference clock for IOB delay circuits
Custom clock inputs available through the XRM2 interface
Two Software-Programmable Clocks

I/O Interfaces

Ordering Information

Related Products

ADM-XRC-KU1

Embedded Data Processing

A high performance reconfigurable XMC based on the AMD Kintex Ultrascale KU060 and KU115 FPGAs.

View Product

Resources:

Deliverables

ADA-V8201 Board
One-Year Warranty
One-Year Technical Support

Support

Please contact Alpha Data for full details on the available support packages for the ADA-V8201.
