Summary

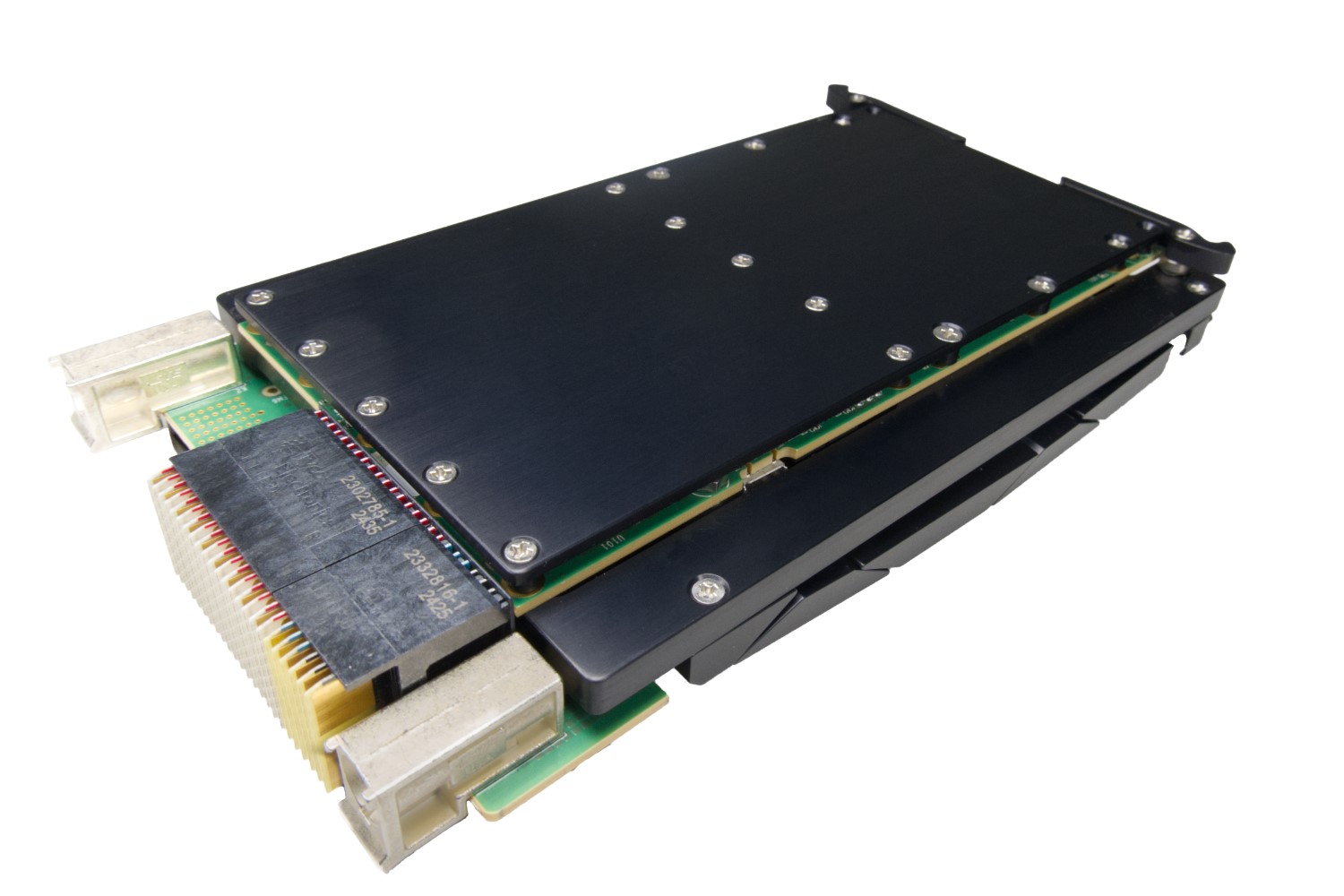

This SOSA-Aligned 3U VPX module hosting a high-performance System-on-Module (SOM) based on the AMD Zynq Ultrascale+ RFSoC, combines FPGA Fabric, ADC and DAC interfaces and ARM CPU cores in a single low-power device.

The module is provided in rugged SOSA-Aligned 3U VPX format and is available in industrial temperature grades with conduction cooling. When equipped with XQ-grade components, the ADA-V9202 also supports the LVAUX SEL mitigation mode. However, the board remains as an industrial temperature-grade solution.

Specification

Board Format

Environmental Specifications

Operating Humidity Range:
Up to 95% (non-condensing)

Host I/F

Target Device

AMD Zynq® Ultrascale+
XCZU47DR-2, XCZU48DR-2 (FFVE1156)

FPGA Resources

FPGA Hard IP Cores

On Board Memory

Target FPGA Configuration

PS - Configured via QSPI or uSD

FPGA Configuration Flash

On-board Clock Specifications

250MHz Reference Clock- HSSIO MGTs
Programmable Clock (150MHz default)
300MHz Reference Clock (DDR4)
300MHz Fabric Clock
25MHz Reference Clock (Ethernet)
50MHz Reference Clock (PS Core)
External Analog Reference Clock

I/O Interfaces

Ordering Information

Available Accessories

CAB-9R1-B/SMA/150 - A breakout cable expanding the Rosenberger Multiport Mini-Coax Locking Connector connections to SMA, 150mm in length.

Contact Alpha Data for further details.

Related Products

Resources:

Deliverables

ADA-V9202 Board
One-Year Warranty
One-Year Technical Support

Support

Please contact Alpha Data for full details on the available support packages for the ADA-V9202.
