Summary

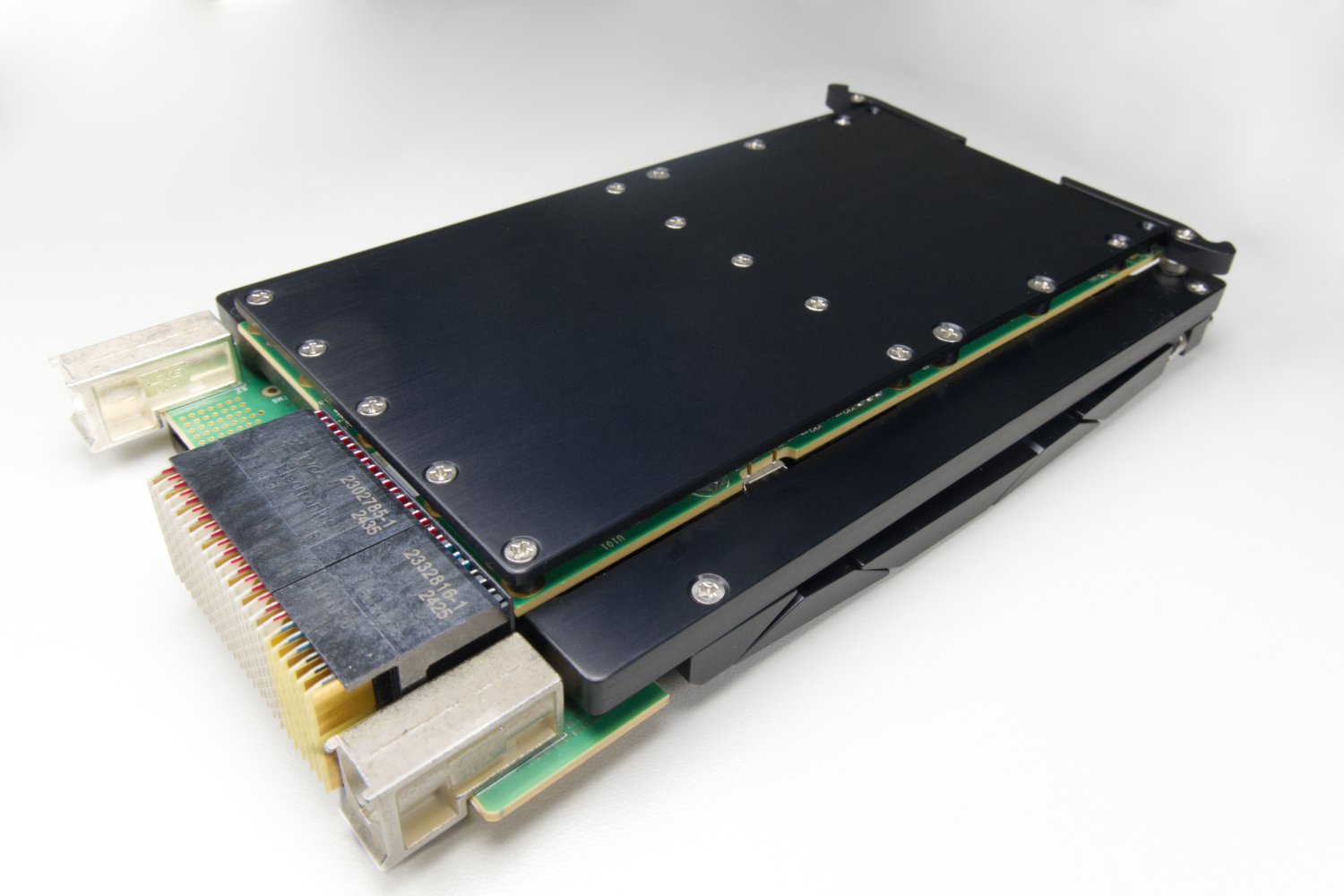

This SOSA-Aligned 3U VPX module hosting an AMD Versal™ ACAP Data Processing Unit suitable for programs seeking a complete hardware path from development to rapid deployment of solutions based on the AMD Versal Prime VM1802 or VC1802 AI Core device.

The module is provided in rugged SOSA-Aligned 3U VPX format and is available in industrial temperature grades with conduction cooling. Flexible reference designs, allowing customers to access the full IO flexibility of the chip, are provided for both the Vivado and Vitis toolchains. The board allows access to a large number of configurable IO pins and Gigabit Transceiver ports, which can connect to built-in hard-IP cores for 100G Multi-rate Ethernet, PCIe and DDR4, or can be controlled by custom IO logic in the programmable fabric, supporting an incredibly wide range of communication standards and applications.

Applications

AI Inference for Edge Applications
SOSA Systems
High-Performance Data Capture and Processing
Low-Latency Networking and Analytics
Radar/Sonar Beamforming
ELINT/ISR
Image/Video Processing
Machine Vision
Digital Signal Processing
Data Encryption

Board Features

SOSA IPMC adhears to Vita 46.11 Tier 3
Quad Arm® Cortex™-A53 MPCore™
Dual Arm® Cortex™-R5 MPCore™
On-board microcontroller accessible via USB provides power rail monitoring; temperature monitoring; and clock programming
XRM2 I/O interface
Conduction and Air-Cooled options

FPGA Features (Hard IP)

300x AI Engines (XCVC1802 only)
1x Dual-core Arm Cortex-A72 APU
1x Dual-core Arm Cortex-R5F RPU
4x PCI Express Gen4 x4 (or 2x8)
2x 100G Multi-rate Ethernet MAC

Specification

Board Format

3U VPX (SOSA Aligned - VITA 46 and 65)
Width: 149 mm
Height: 12.72 mm
Depth: 74 mm

Environmental Specifications

Temperature Limits
Operating Temperature RangeStorage Temperature Range
MinMaxMinMax
AC1Air Cooled Industrial-40°C+85°C-55°C+100°C
CC1Conduction Cooled Industrial-40°C+85°C-55°C+100°C

Operating Humidity Range:
Up to 95% (non-condensing)


Host I/F

PCI Express Gen4 x8
2x Ethernet (100G/50G/40G/4x25G/4x10G)


Target Device

AMD Versal
XCVM1802-2MSI or XCVC1802-2MSI (D1760)

FPGA Resources

Chosen DeviceDSPsBRAM
XCVM1802-2MSI or XCVC1802-2MSI1600-1968 DSP58s28-34Mb

FPGA Hard IP Cores

300x AI Engines (XCVC1802 only)
1x Dual-core Arm Cortex-A72 APU
1x Dual-core Arm Cortex-R5F RPU
4x PCI Express Gen4 x4 (or 2x8)
2x 100G Multi-rate Ethernet MAC

On Board Memory

Memory TypeNo. BanksMemory Size (per bank)
SDRAM2512M x 64-bit (4 GiB) Banks - LPDDR4 (3900MHz)
microSD1SD Card specific SDC

Target FPGA Configuration

Configured via QSPI, uSD, or JTAG (P5 or onboard).


FPGA Configuration Flash

Flash TypeFlash Size
8-bit QSPI2048 Mb

On-board Clock Specifications

33MHz Reference Clock for PS Core 100MHz Reference Clock for HSSIO MGTs 300MHz Reference Clock for DDR4 156.25MHz Programable Reference Clock for MGTs 24MHz and 48MHz USB Reference Clocks 25MHz Etherenet Reference Clock


I/O Interfaces

Interface TypeQtyDescription
FRONT I/O (XRM2)
XRM2 High-Speed Serial8High-Speed Serial Input Output (HSSIO) Links
XRM2 Low-Speed GPIO146LVCMOS/LVDS I/O
P1 COMMUNICATIONS I/O (P1)
Expansion Plane (PCI Express)1Gen2 x4 or Gen3 x8 (G2x4 from PS or G3x4/x8 from PL)
Ethernet240G/100G Fat Pipe Ethernet
Ethernet21G/10G/25G Ultra Thin Pipe Ethernet
Serial Low-Speed Comms2RS232 or UART from PS
P0 COMMUNICATIONS I/O (P0)
Serial Low-Speed Comms2IPMC compliant redundant I2C
Serial Low-Speed Comms1JTAG programming interface
P0 COMMUNICATIONS I/O (P4)
P4 GPIO4General Purpose I/O (GPIO) from PS

Ordering Information

Ordering Code
ADA-VA210/(d)(c)(a)
ParameterCodeParameter Description
Deviced/M18-2MSI = VM1802-2MSI
/C18-2MSI = VC1802-2MSI
Coolingc/AC1 = air cooled industrial
/CC1 = conduction cooled industrial
Conformal Coatingablank = no conformal coating
/A = Acrylic
/P = Polyurethane
NoteCustom order codes are available for specific modifications, additional testing/screening, and enhanced ruggedization like tin-lead solder. Contact [email protected] for more details.

Related Products

The ADA-VA210 does not have any related products.

Resources:


Deliverables

ADA-VA210 Board
One-Year Warranty
One-Year Technical Support
RD-XA210 Reference Designs

Support

Please contact Alpha Data for full details on the available support packages for the ADA-VA210.
