Summary

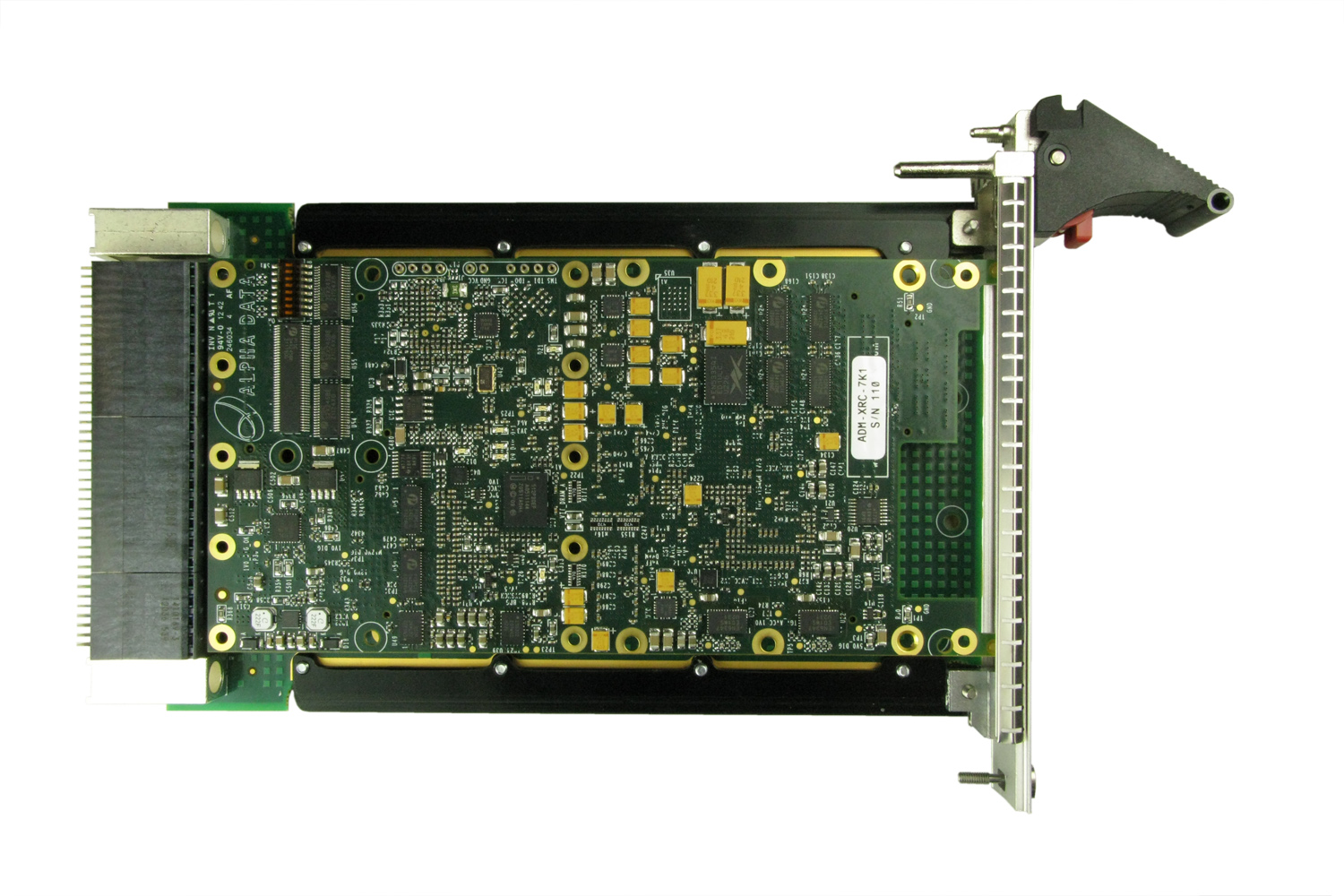

The ADA-VPX3-7K1 assembly brings together the power and configurability of the ADM-XRC-7K1 FPGA XMC in a VPX 3U module based on the AMD Kintex-7 range of Platform FPGAs.

Features include PCI Express Gen2 interface, external memory, high density I/O, temperature monitoring and flash boot facilities.
A comprehensive cross platform API with support for Microsoft Windows, Linux and VxWorks provides access to the full functionality of these hardware features.
Placing the PCI Express bridge in bypass allows the creation of a Gen 2 x8 PCI Express endpoint design directly into the target FPGA (x8 for -2/-3 devices only x4 for -1 devices).
There is a build option to include a 10/100/1000 Ethernet Interface connecting the target FPGA to P6.

Applications

Radar/Sonar Beamforming
ELINT
Image/Video Processing
Data Encryption

Board Features

Air-Cooled/Conduction-Cooled Options
Separate PCI Express Bridge
XRM2 I/O Interface

FPGA Features (Hard IP)

1x PCIe® Gen2

Specification

Board Format

3U VPX (OpenVPX Compliant)

Environmental Specifications

Temperature Limits

		Operating Temperature Range		Storage Temperature Range
		Min	Max	Min	Max
ACE	Air Cooled Extended	0°C	+70°C	-55°C	+100°C
AC1	Air Cooled Industrial	-40°C	+70°C	-55°C	+100°C
CC0	Conduction Cooled Commercial	0°C	+55°C	-40°C	+85°C
CCE	Conduction Cooled Extended	0°C	+70°C	-55°C	+100°C
CC1	Conduction Cooled Industrial	-40°C	+70°C	-55°C	+100°C

Operating Humidity Range:
Up to 95% (non-condensing)

Host I/F

PCI Express Gen2 x1, x2 or x4 link to separate bridge device with 2GB/s local link to user FPGA
4 DMA Controllers
Interrupt Controller

Target Device

AMD Kintex® -7
XCK325T, XCK410T (FFG900)

FPGA Resources

Chosen Device	FFs	LUTs	DSPs	BRAM
XCK325T	407k	326k	840	16Mb
XCK410T	508k	406k	1540	28.6Mb

FPGA Hard IP Cores

1x PCIe® Gen2

On Board Memory

Memory Type	No. Banks	Memory Size (per bank)
SDRAM	2	256MB DDR3-1600 - (Alternatively, slower 2Gbit devices can be fitted giving 1GByte on board in 2 banks of 512MByte @ 800MT/sec)

Target FPGA Configuration

PCI Express direct to SelectMAP port
From Flash direct on power up
External JTAG connector

FPGA Configuration Flash

Flash Type	Flash Size
BPI	512MBit

On-board Clock Specifications

Low-jitter 250MHz reference clock, suitable for SerDes applications
Low-jitter 200MHz reference clock for IOB delay circuits
Custom clock inputs available through the XRM2 interface
Two Software-Programmable Clocks

I/O Interfaces

Interface Type	Qty	Description
FRONT I/O (XRM2)
Discrete Digital	146	LVCMOS/LVDS I/O (programmable to 1.2, 1.5 or 1.8V)
High-Speed Serial Links	8	High-Speed Serial Links to XRM2
VPX I/O (P1)
High-speed serial links	1	x4 PCI Express Interface
1000Base-X Ethernet	2	Ethernet connectivity to VPX backplane
Discrete Digital	8	Discrete IO
REAR I/O (P2)
Discrete Digital	64	IO compliant with VITA 46.9 X64S

Ordering Information

Ordering Code
ADA-VPX3-7K1/z-y(m)(c)/Pn4(e)
Parameter	Code	Parameter Description
Kintex-7 device	z	K325T,K410T
Kintex-7 speed	y	1, 2, 3
Memory	m	blank = Two banks each of 256MBytes at 1600MT/s, /1 = Two banks of 512MByte at 800MT/s
Cooling	c	blank = air cooled commercial, /ACE = Extended air cooled Commercial, /AC1 = air cooled industrial, /CC1 = conduction cooled industrial
Ethernet I/F Fitted	e	blank = not fitted, /GE = Ethernet I/F fitted
Note	not all FPGA speed grades available in all configurations. Contact Alpha Data for full details.
