Specification

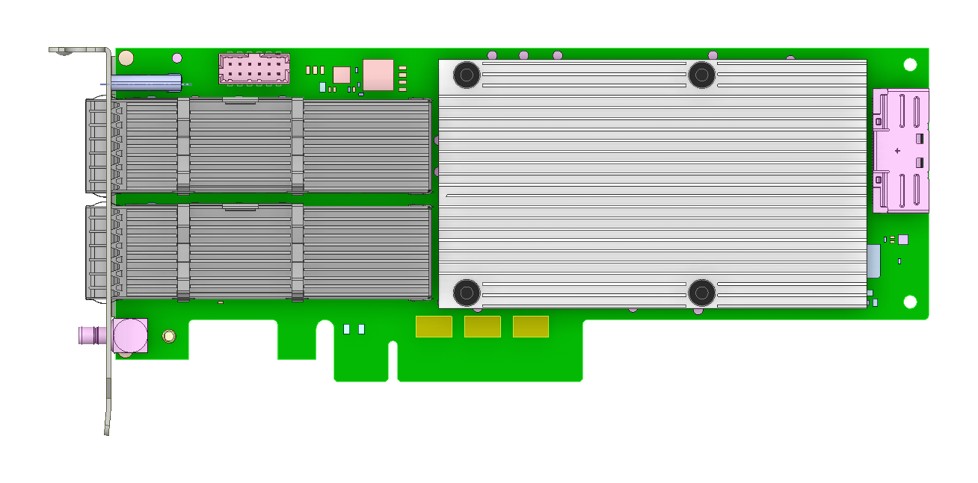

Board Format
PCIe half length, half height, single slot
Width: 173 mm
Height: 68.9 mm
Depth: 17.5 mm
Weight: TBD g
Environmental Specifications
Temperature Limits | Operating Temperature Range | Storage Temperature Range |
|---|
| Min | Max | Min | Max |
|---|
| Active | FAN Fitted | 0°C | +55°C | -40°C | +85°C |
| Passive | FAN not Fitted | 0°C | +55°C | -40°C | +85°C |
Operating Humidity Range:
Up to 95% (non-condensing)
EMC:
See the ADM-PC110 Declaration of Conformity document
Host I/F
PCI Express Gen6x8
Target Device
AMD Versal™ Premium Gen2 Adaptive SoC
2VP3202 (VSVJ1760)
FPGA Resources
| Chosen Device | LUTs | DSPs | BRAM | URAM |
|---|
| 2VP3202 | 797K | 4.0K | 24Mb | 101Mb |
FPGA Hard IP Cores
2x ARM Cortex-A72 MPCore™
2x ARM Cortex-R5F MPCore™
1x 256kB On-Chip Memory with ECC
On Board Memory
| Memory Type | No. Banks | Memory Size (per bank) |
|---|
| LPDDR5 SDRAM | 4 | 1G x 32 bit (4 GiB per bank) LPDDR5-8533 |
System Monitor
The ADM-PC110 provides a system monitoring chip which can provide real-time temperature, voltage and current readings of the system, as well as reconfigure programmable clocks and much more. The system monitor can be accessed directly through the USB interface via the front panel (or rear of the board). It also connects to the target FPGA via the USB to UART interface (see block diagram).
Target FPGA Configuration
The FPGA is configurable using a front panel USB interface and the Vivado tool suite (through the onboard Digilent module).The configuration flash for the FPGA is writeable via the USB interface and the Vivado tool suite, or the provided Alpha Data firmware.
FPGA Configuration Flash
| Flash Type | Flash Size |
|---|
| 8-bit OSPI | 2Gb |
I/O Interfaces
| Interface Type | Qty | Description |
|---|
| HSSIO I/O (Front Panel) |
| QSFP-DD | 1 | 2x QSFP-DD Cages for copper or fibre interconnectivity. 800G capable, up to 8x112 Gbps PAM4 or 8x56 Gbps NRZ. |
| HSSIO I/O (Internal) |
| CXL 3.1 | 1 | 512 Gbps (8x64Gbps) MCIO connector supporting CXL 3.1 |
| TIMING I/O I/O (Front Panel) |
| 1PPS Input | 1 | 1PPS timing input (Signaling as per ITU-T G.703 section 19.2) |
| MANAGEMENT I/O (Internal) |
| 1000Base-T Ethernet | 1 | Versal PS GEM Ethernet |
| MANAGEMENT I/O (Front and Rear) |
| USB | 1 | USB-C for JTAG, UART, and system monitor |
