Summary

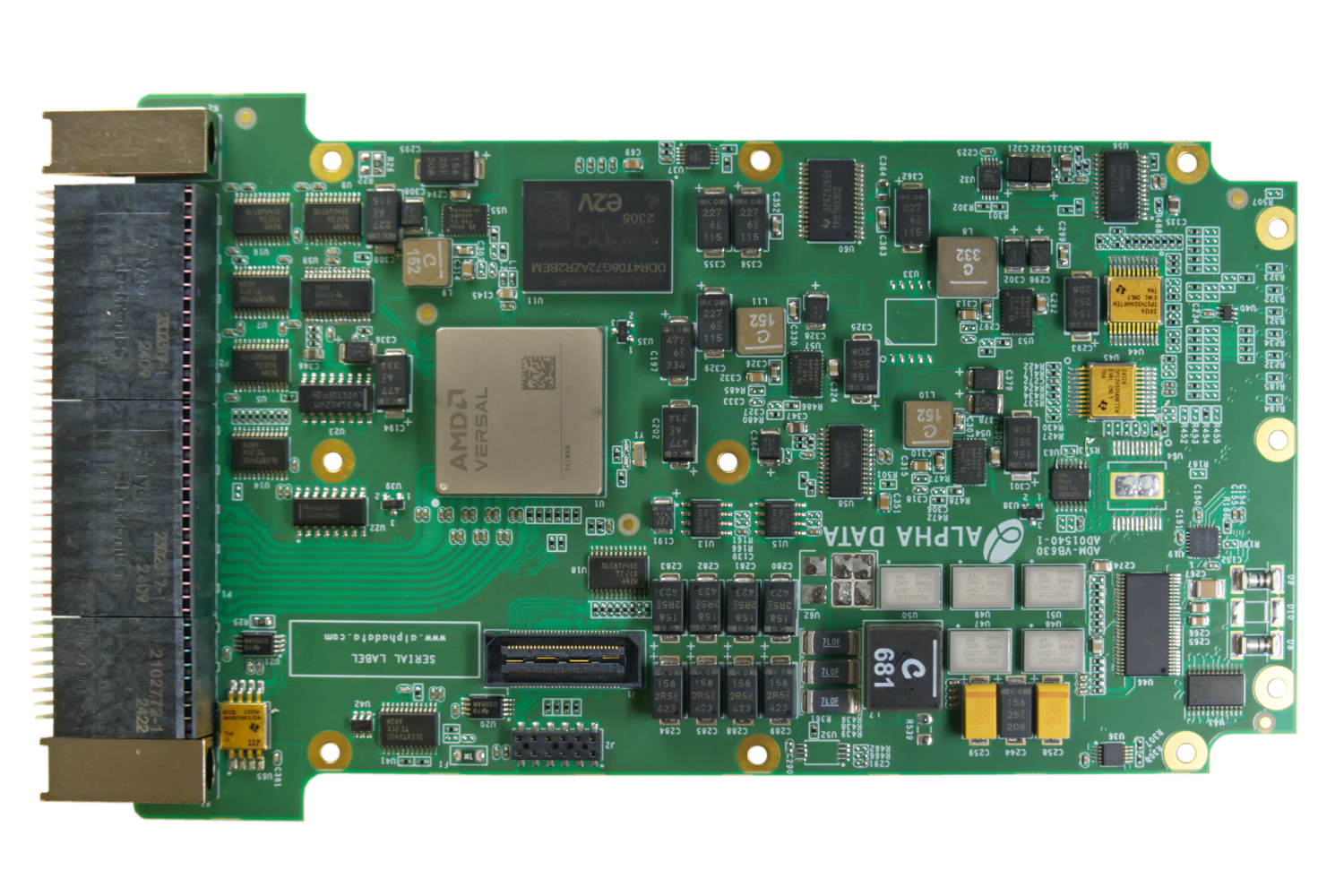

A 3U Space VPX platform featuring the AMD Versal AI Edge XQRVE2302 Adaptive SoC for Space applications. This processor card is available in either a 160 mm or 220 mm deep Space VPX form factor, equipped with Space Grade DDR4 Memory module from Teledyne e2v, and a fully radiation-tolerant core power supply developed in collaboration with TI and EPC Space. Built-in CAN bus and SpaceWire connectivity can allow this module to operate at the heart of a satellite system as the controller, or as a data capture and processing module.
The platform is designed with components capable of surviving a minimum of 20 krad TID and are free of destructive SEE to at least 43 MeV·cm2/mg. The /DEV/PB version is for development purposes and fitted with commercial/ engineering model components. Flight builds are described in the option table below and undergo additional acceptance testing.
Applications
Adaptive SoC Development for Space
Satellite Bus Controller
Adaptive Flight Computer
Advanced Communications Module
Signal and Image Processing
Machine Learning and AI
Board Features
Fully radiation-tolerant reference designVersal VE2302 SoC for Space
Reference full radiation-tolerant Power Supply using SEP grade parts from TI and GaN FETs from EPC Space
3U Space VPX form factor (160 mm deep or 220 mm deep heat sink)
8x 16G HSSIO via P1 Interface
Teledyne e2v Space Grade DDR4 Memory
Rad-hard watchdog
FPGA Features (Hard IP)
34x AI Engine-ML Tiles2x ARM Cortex-A72 MPCores™
2x ARM Cortex-R5 MPCores
