Summary

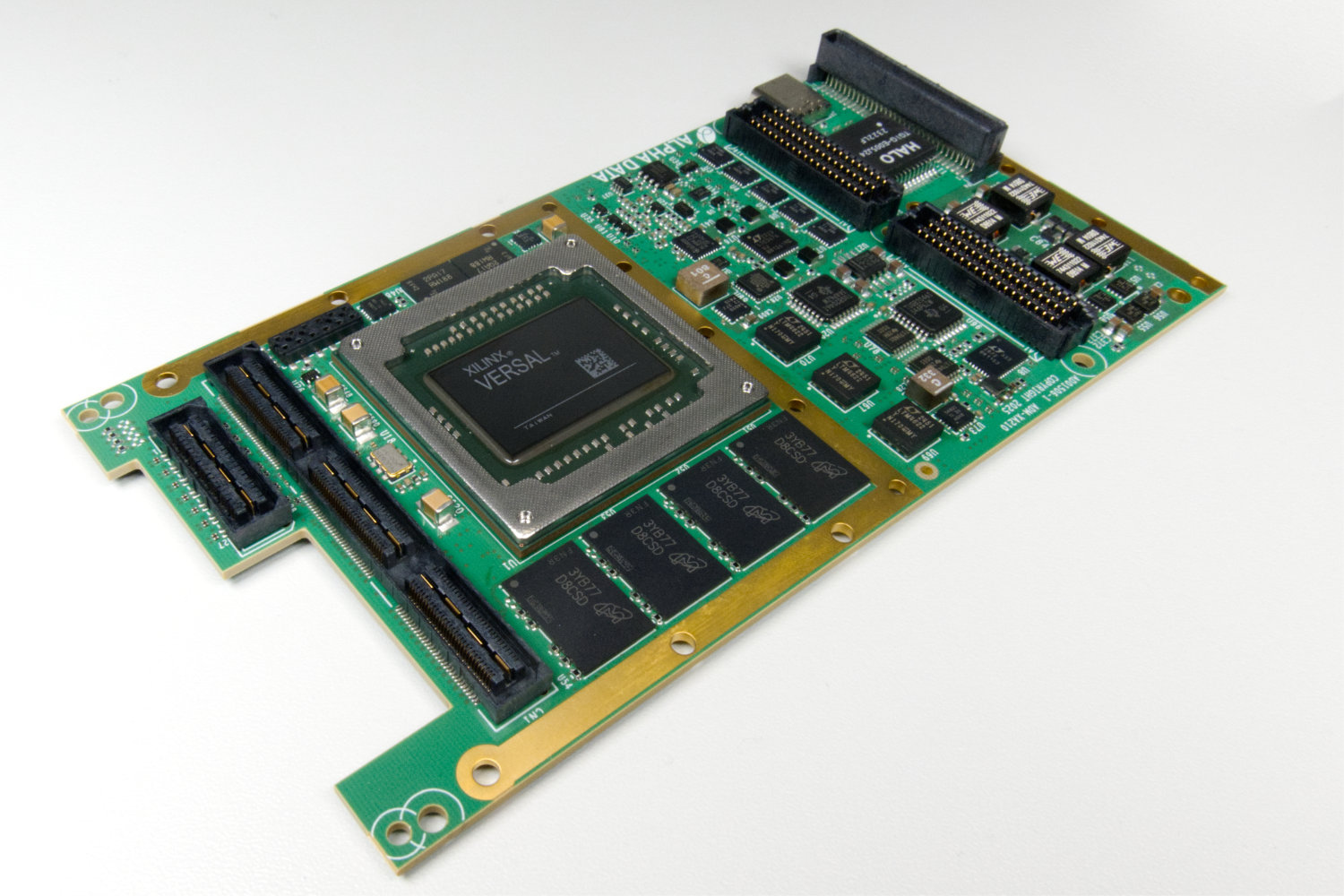

The ADM-XA210 is an adaptable XMC form factor AMD Versal™ ACAP Data Processing Unit suitable for programs seeking a complete hardware path from development to rapid deployment of solutions based on the AMD Versal ACAP VC1802 AI Core device.
The XMC form factor can be migrated between PCIe, VME, and VPX carriers for use in desktop, lab, rack mount and fully ruggedized, SOSA-aligned, Air Transport Rack (ATR) deployment chassis in industrial temperature ranges. Additionally, the board can optionally be deployed stand-alone without any reliance on a host Single Board Computer (SBC) or CPU. The XRM2 interface on the board allows off-chip support of the many standard and custom interfaces that can be supported by the Versal ACAP through the very wide range of Alpha Data IO adapters available. Flexible reference designs, allowing customers to access the full IO flexibility of the chip, are provided for both the Vivado and Vitis toolchains. The board allows access to a large number of configurable IO pins and Gigabit Transceiver ports, which can connect to built-in hard-IP cores for 100G Multi-rate Ethernet, PCIe and DDR4, or can be controlled by custom IO logic in the programmable fabric, supporting an incredibly wide range of communication standards and applications.
Applications
AI Inference for Edge Applications
High Performance Data Capture and Processing
Low-Latency Networking and Analytics
Radar/Sonar Beamforming
ELINT/ISR
Image/Video Processing
Machine Vision
Digital Signal Processing
Data Encryption
Board Features
VITA 88 XMC+ connectorsQuad ARM® Cortex™-A53 MPCore™
Dual ARM® Cortex™-R5 MPCore™
On-board microcontroller accessible via USB provides power rail monitoring; temperature monitoring; and clock programming
XRM2 I/O interface
Conduction and Air-Cooled options
SOSA alignment with VPX carrier
FPGA Features (Hard IP)
300x AI Engines (XCVC1802 only)1x Dual-core Arm Cortex-A72 APU
1x Dual-core Arm Cortex-R5F RPU
4x PCI Express Gen4 x4 (or 2x8)
2x 100G Multi-rate Ethernet MAC
