Summary

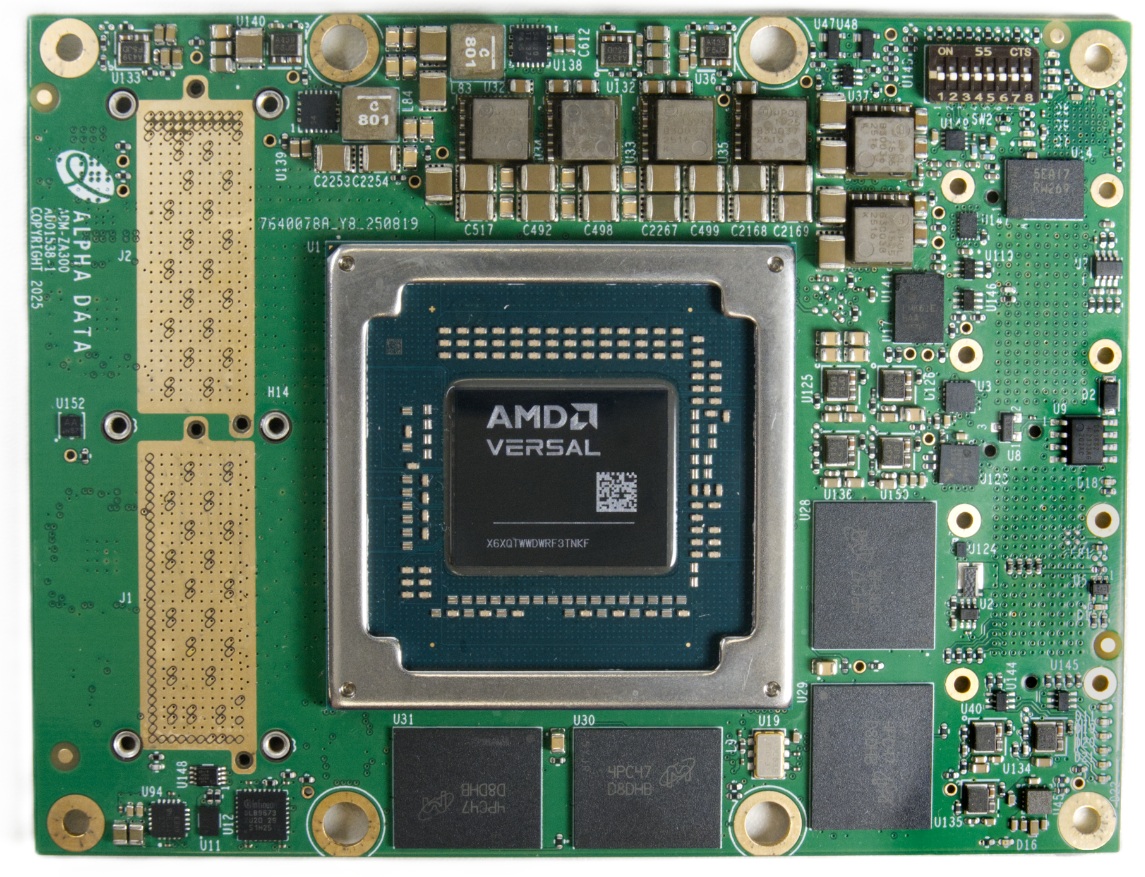

This AMD Versal™ RF VR1602/VR1652 SoM (System on Module) delivers all the advantages of AMD's latest RF platform in a compact deployable form factor.
Versal RF offers 16 DACs and 16 ADCs at 14-bit resolution with up to 18GHz bandwidth combined with powerful hardened IP for FFT, channelization, LDPC decode, and resample. Alpha Data is proud to deliver these uncompromised design resources in a compact form factor to accelerate product development. Features include: 32 channel wideband ADC/DAC connectivity, RF clock reference inputs, 60GPIO, PS I/O for Ethernet, USB and COM ports, system monitoring, JTAG programming, High-Speed Debup Port (HSDP), 20 lanes of high speed serial I/O capable of PCIe Gen5x4, PCIe Gen4x8, NVME, 2x 100G Ethernet, 56G PAM4, and more.
Applications
RF Signal Sampling/Generation
Electromagnetic Spectrum Operations (EMSO)
Radar Systems
MilCom
RF Signal Sampling/Generation
Beamforming
Signal Detection/Jamming
Pre-6G Systems
Quantum Interfacing
Board Features
14-bit resolution on up to 16 ADC and 16 DAC channels capable of Multi-Gigasample data conversionAMD Versal hardened and re-configurable logic and DSP processing
AMD Versal multi-core control and computation Processing System
18GHz front end bandwidth
FPGA Features (Hard IP)
16 or 4x 14-bit 8GSPS or 32GSPS RF-ADC16 or 8 x 14-bit 16GSPS RF-DAC
2x ARM® Cortex™-A72 (APU)
2x ARM® Cortex™-R5F (RPU)
2x 100G Multirate Ethernet MAC
1x PCIe Gen5x4
4x DDR5 Memory Controllers
