Summary

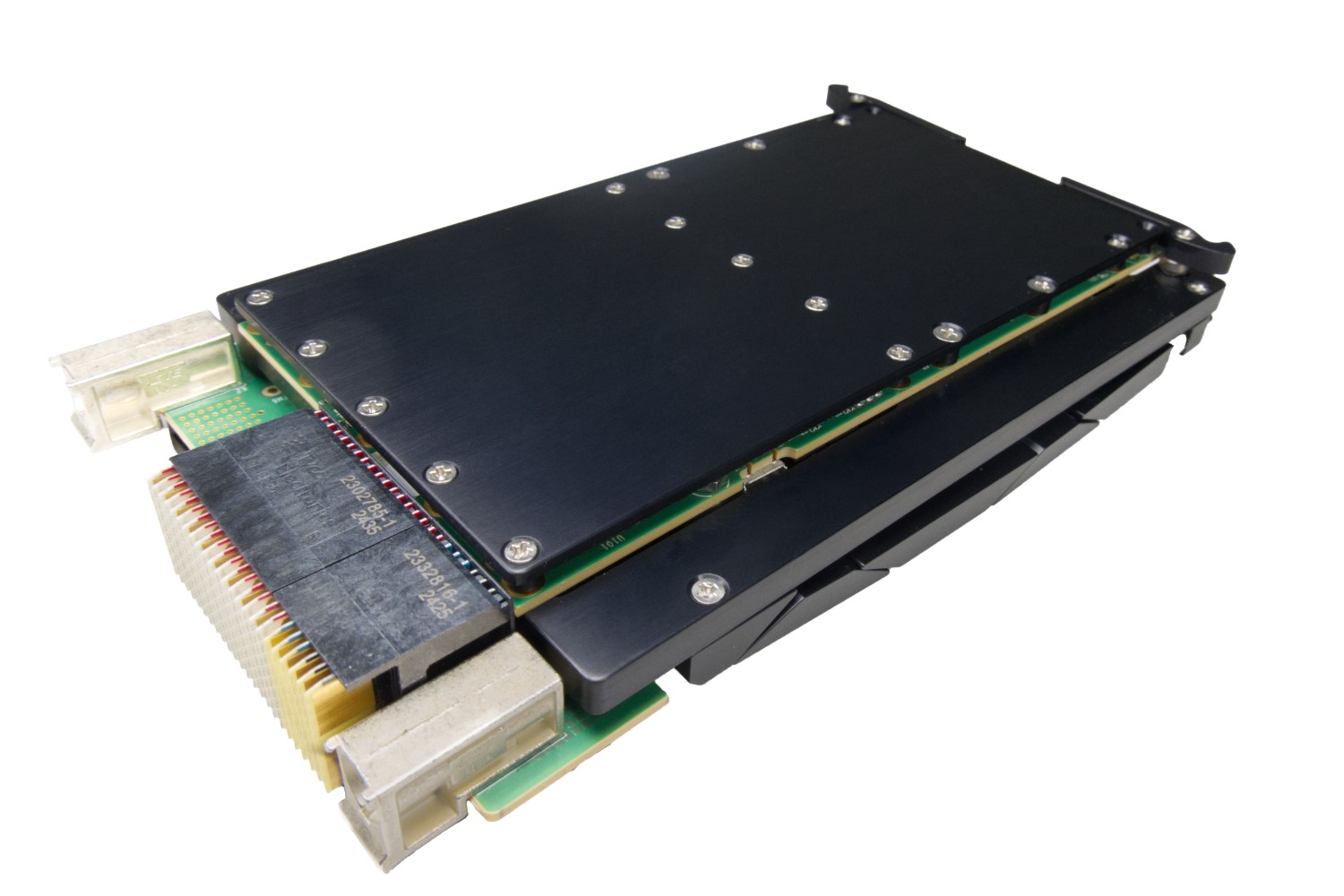

An FPGA Full System Stack (FFSS) 3U VPX RFSoC module integrated with PL-based NVMe data streaming.

This FFSS combines an MLE NVMe PL or PS Subsystem with Alpha Data's ADA-V9202 rugged SOSA-Aligned 3U VPX format module and is available in industrial temperature grades with conduction cooling. All key functionality is pre-integrated and pre-validated and ships as a compilable FPGA design project along with an IP-Core license from MLE. The FFSS-ADA-VA330 comprehensively manages the data path, configuring the PCIe core for high-speed transfer. Implementations using either the PS and PL are available depending on the customer use case.

Specification

Board Format

Environmental Specifications

Operating Humidity Range:
Up to 95% (non-condensing)

Host I/F

Target Device

AMD Zynq® Ultrascale+
XCZU47DR-2, XCZU48DR-2 (FFVE1156)

FPGA Resources

FPGA Hard IP Cores

On Board Memory

Target FPGA Configuration

PS - Configured via QSPI or uSD

FPGA Configuration Flash

On-board Clock Specifications

250MHz Reference Clock- HSSIO MGTs
Programmable Clock (150MHz default)
300MHz Reference Clock (DDR4)
300MHz Fabric Clock
25MHz Reference Clock (Ethernet)
50MHz Reference Clock (PS Core)
External Analog Reference Clock

I/O Interfaces

Ordering Information

Related Products

ADA-VA330

RF Signal Sampling/Generation

A Versal RF VR1602/VR1652 Adaptive SoC based 14.6.11 SOSA-Aligned 3U VPX module. This module delivers all the advantages of AMD's latest RF platform, in a common industry standard and deployable form factor.

View Product

ADM-XRC-9R1-B

Adaptable RF Signal Processing

A high performance XMC rugged System On Module (SOM) based on the Gen 3 AMD Zynq Ultrascale+ RFSoC, which combines FPGA Fabric, 6GHz ADC and DAC interfaces and ARM CPU cores in a single low-power device.

View Product

ADA-V9202

RF Signal Sampling/Generation

This SOSA-Aligned 3U VPX module hosting a high-performance System-on-Module (SOM) based on the AMD Zynq Ultrascale+ RFSoC, combines FPGA Fabric, ADC and DAC interfaces and ARM CPU cores in a single low-power device.

View Product

FFSS-ADA-VA330

RF Signal Sampling/Generation

An FPGA Full System Stack (FFSS) for 14.6.11 SOSA-Aligned 3U VPX Versal RF module with PS or PL-based NVMe data streaming.

View Product

Resources:

Reference Designs: (FFSS-ADA-V9202-PLx)

Download Reference Designs []

Deliverables

FFSS-ADA-V9202 Board
One-Year Warranty
One-Year Technical Support

Support

Please contact Alpha Data for full details on the available support packages for the FFSS-ADA-V9202.
