Summary

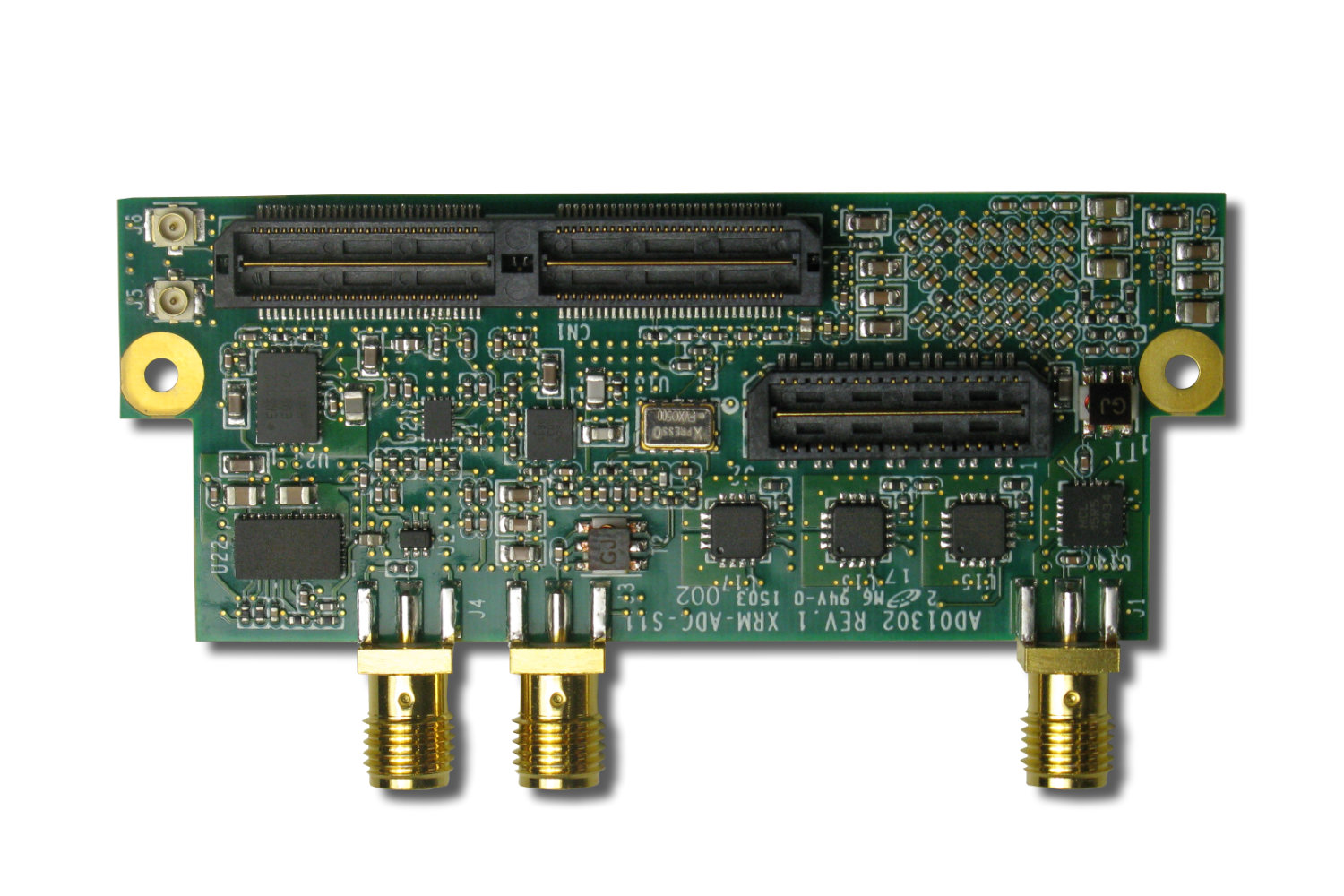

The XRM2-ADC-S11B is an XRM2 I/O Module, providing one Analog to Digital converter with 12-bit resolution and sampling rates up to 2000Msps (2500Msps with order code option /25).
Aimed at IF/RF Signal Sampling, the sampling clock can be sourced from either an external clock source or from a clock generated within the attached FPGA board. A programmable input attenuator can be used to vary the full scale input level over a 15 dB range. An Auxiliary I/O port is provided for use as a trigger input and general purpose signaling. The XRM2 communicates to the FPGA via a JESD204B high speed interface.
Applications
RF/IF Signal Sampling
High-speed Analog signal Sampling
Board Features
Single 12-bit 2000/2500Msps ADCExternal Clock Input
