The ADM-VA600-FL4 is a plug in Rad-Hard NOR Flash Memory module for the ADM-VA601 and ADM-VB630.
Fitted with one or two 1Gb CYPT17B01G133AZMB Infineon QSPI NOR Flash module for Space Prototyping. Pin compatible device options that can be fitted also include: CYRS17B01G-133AZMB for Space Flight, CYEL17B01G-133AZM for New Space and 5962F2421401PXE Space QML-P
Configuration Memory for Space
Prototype for Space Grade Systems
Deployable Space Grade Solution
| Ordering Code | ||
|---|---|---|
| ADM-VA600-FL4/(S)/PB | ||
| Parameter | Code | Parameter Description |
| Size | S | /1x1G - One 1Gbit fitted /2x1G - Two 1Gbit parts fitted |
A 3U Space VPX platform featuring the AMD Versal AI Edge XQRVE2302 Adaptive SoC for Space applications. This processor card is available in either a 160 mm or 220 mm deep Space VPX form factor, equipped with Space Grade DDR4 Memory module from Teledyne e2v, and a fully radiation-tolerant core power supply developed in collaboration with TI and EPC Space. Built-in CAN bus and SpaceWire connectivity can allow this module to operate at the heart of a satellite system as the controller, or as a data capture and processing module.
A 6U Space VPX reference platform for the AMD Versal AI Core XQRVC1902 Adaptable SoC platform for Space. Features a 220mm deep Space VPX form factor board and supports a full radiation tolerant core power supply developed with TI and EPC Space capable of up to 160A performance.

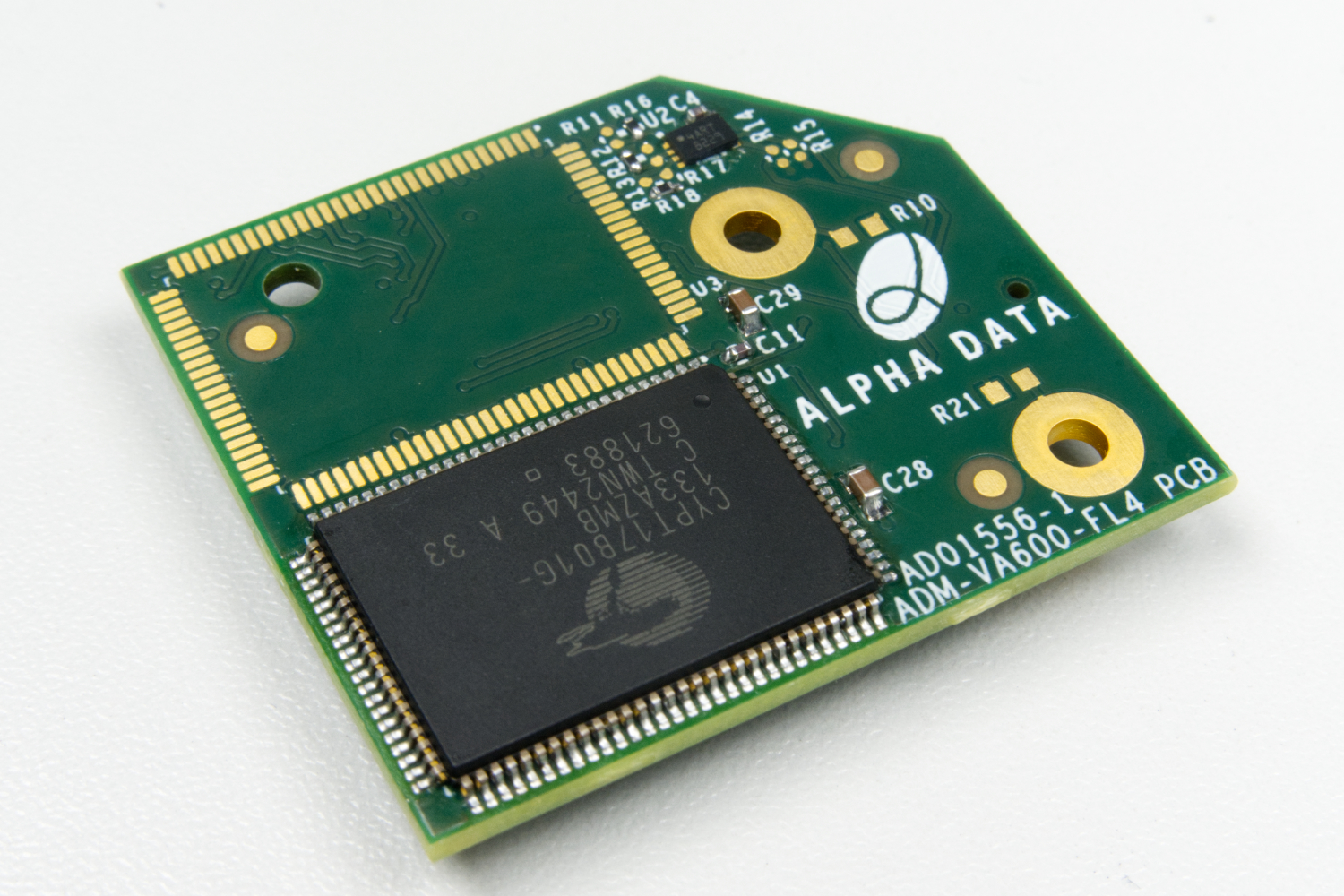

ADM-VA600-FL4 Board
One-Year Warranty
One-Year Technical Support
Please contact Alpha Data for full details on the available support packages for the ADM-VA600-FL4.
