Summary

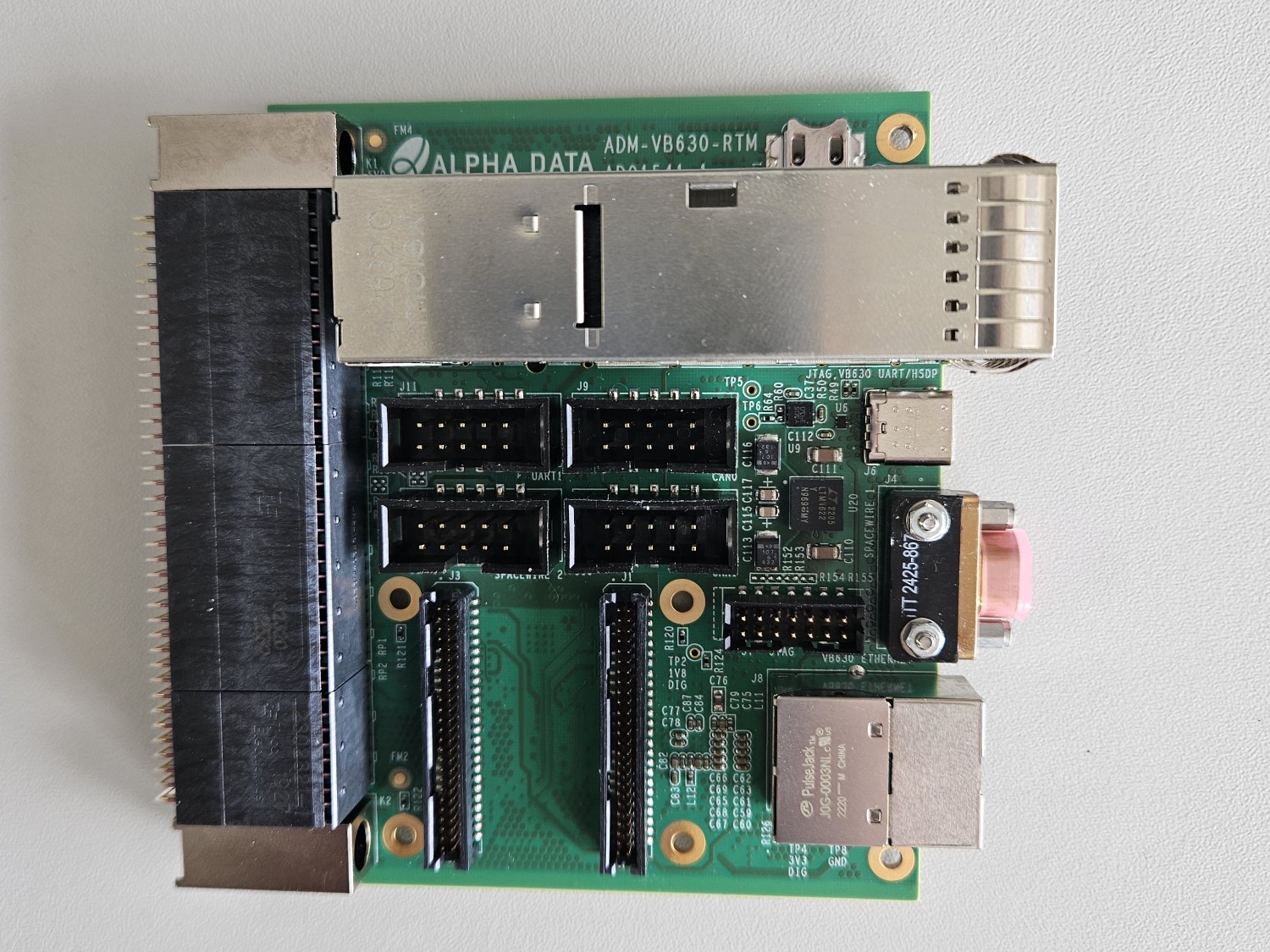

A 3U, VPX, Rear Transition Module (RTM) designed to interface with Alpha Data ADM-VB630 Versal Edge Space Development board.

The RTM provides complete breakout of all backplane signals providing the user with complete flexibility during development and debug. Multiple QSFP cages, Gigabit Ethernet port (including PHY), Spacewire connector and header, Dual CAN Bus, USB Type C socket, buffered RS232, JTAG and internal header for GPIO connectivity

Applications

ADM-VB630 Testing/Debug
Multi-Gigabit Backplane Breakout for ADM-VB630
Ethernet
SpaceFibre
SpaceWire
CAN bus
GPIO

Board Features

Dual QSFP28 cages
1G Ethernet RJ45
USB socket
RS232
Spacewire
CAN bus
GPIO Header

Specification

Board Format

VPX 3U Rear Transition Module

Environmental Specifications

Temperature Limits
Operating Temperature RangeStorage Temperature Range
MinMaxMinMax
AC0Air Cooled Commercial0°C+55°C-40°C+85°C

Operating Humidity Range:
Up to 95% (non-condensing)


Host I/F

n/a

I/O Interfaces

Interface TypeQtyDescription
VPX I/O (RTM backpanel)
Comms1USB-C for HSDP Debug, JTAG Debug
Connector: USB C socket
Gigabit Ethernet1Gigabit Ethernet Interfaces
Connector: RJ45 Sockets
QSFP2QSFP28 cages for High Speed Serial (8 lanes total)
Connector: QSFP28
VPX I/O (on-board)
Comms1RS232 Communications
Connector: PCB header (RS232)
VPX I/O (RTM backpanel)
Comms1Spacewire
Connector: 1x Connector and 1x PCB header for Spacewire
Discrete I/O24Single Ended GPIO
Connector: PCB header
Comms2CAN Bus
Connector: PCB headers for CAN bus connection

Ordering Information

Ordering Code
ADM-VB630-RTM

Related Products

ADM-VB630

ADM-VB630

Adaptive SoC Development for Space

A 3U Space VPX platform featuring the AMD Versal AI Edge VE2302 Adaptive SoC. This FPGA processor card is available in either a 160 mm or 220 mm deep Space VPX form factor, equipped with Space Grade DDR4 Memory modules from Teledyne e2v and a fully radiation-tolerant core power supply developed in collaboration with TI and EPC Space.

View Product

Resources:


Deliverables

ADM-VB630-RTM Board
One-Year Warranty
One-Year Technical Support
